Wall-Mounted Dual Compartment Shop Utility Tray with Central Handle – Durable & Storage Organizer

AT
Atul Thakur8 projects
0.0(0 reviews)
Industrial Design
Solidworks
CAD
Design
Logo
sprite x=0 y=0
Angle x=0 y=0
Angle x=0 y=90
Angle x=0 y=270
Angle x=90 y=0
Angle x=270 y=0
Angle x=60 y=30

About this design

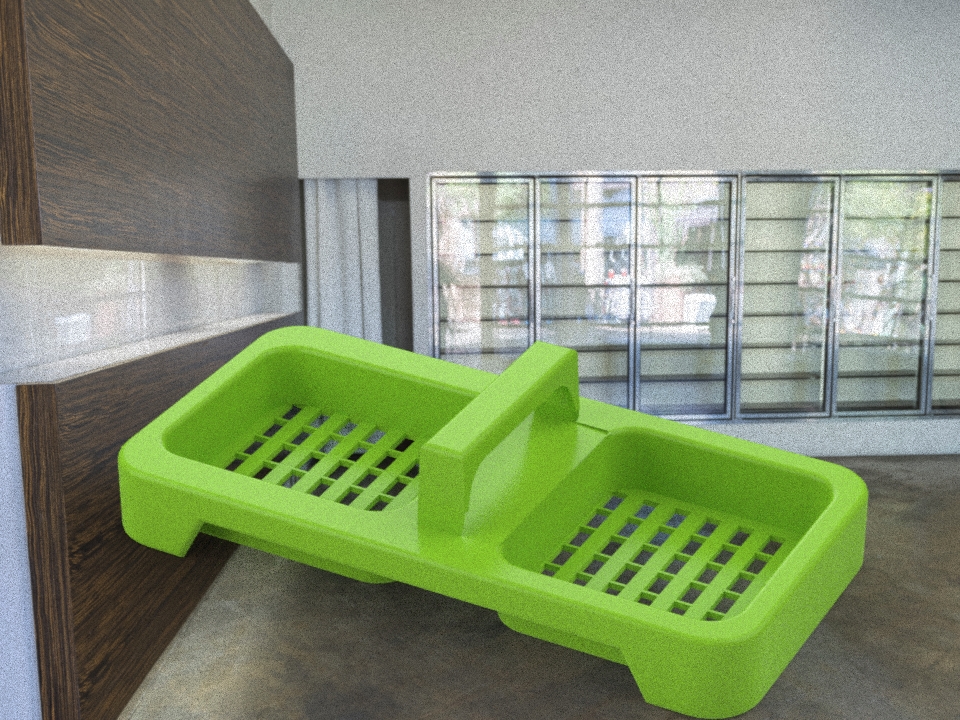

This wall-mounted dual compartment shop tray is designed for efficient storage and easy access in retail and commercial spaces. It features two perforated sections for ventilation and quick cleaning, along with a central ergonomic handle for convenient handling. Made from durable, lightweight plastic, it saves counter space and helps keep shops organized, clean, and professional.

$20/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileFormat: STEP
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

CAD File Details

File Information
File Nameinput_file.stp
File TypeSTP
Unitsmm
Geometry Summary
Faces474
Edges1,374
Vertices894
Solids1
Surface Types
Planar385
Cylindrical57
Conical8
Toroidal20
Other4
Bounding Box
Width200.00 mm
Height100.00 mm
Depth50.00 mm
Volume
Total Volume74291.69 mm³
Usage Notes
NotesSuitable for design reference, visualization, prototyping workflows and engineering review. Validate dimensions and geometry before manufacturing use.
