About this design

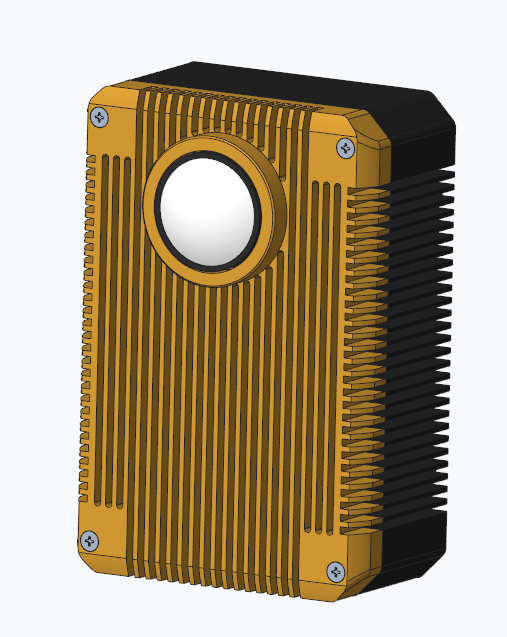

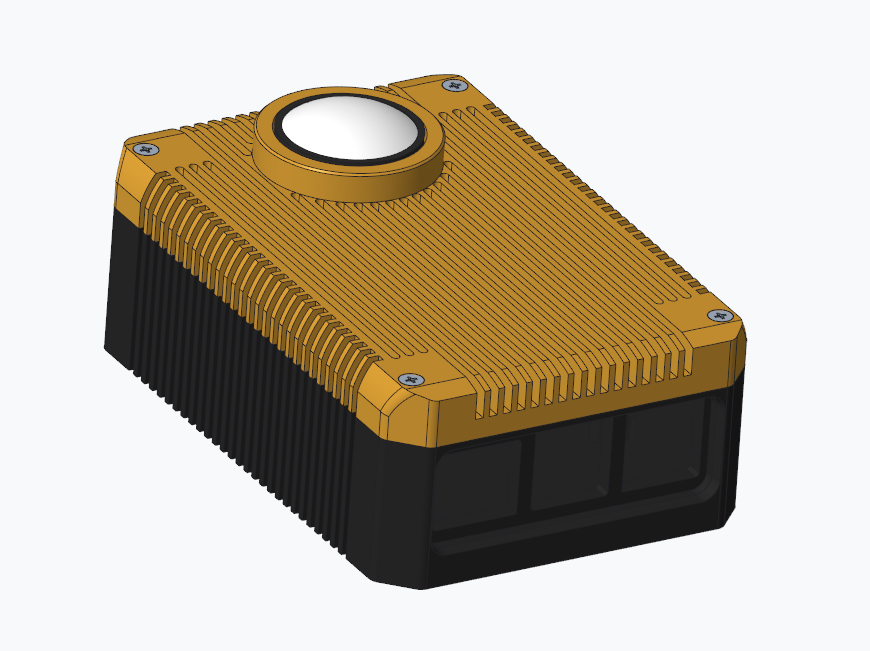

The enclosure features a precision-machined metal housing with a front-facing camera aperture, ensuring accurate optical alignment and protection of the camera lens. The front plate is secured with multiple fasteners to provide rigidity and allow easy servicing or lens replacement. A protective hood/sunshade is integrated into the design to minimize glare, dust accumulation, and direct exposure to rain or sunlight.

$30/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileFormat: STEP
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

CAD File Details

File Information
File Nameinput_file.stp
File TypeSTP
Unitsmm
Geometry Summary
Faces1,374
Edges3,941
Vertices2,598
Solids7
Surface Types
Planar749
Cylindrical549
Conical58
Other18
Bounding Box
Width92.00 mm
Height63.99 mm
Depth135.50 mm
Volume
Total Volume231104.47 mm³
Usage Notes
NotesSuitable for design reference, visualization, prototyping workflows and engineering review. Validate dimensions and geometry before manufacturing use.
