Limit Switch, Model: OMRON D3V-6G6M-3C24-K

RM
RAHUL MS2 projects
0.0(0 reviews)
Robotics
Safety Device
Logo
sprite x=0 y=0
Angle x=0 y=0
Angle x=0 y=90
Angle x=0 y=270
Angle x=90 y=0
Angle x=270 y=0
Angle x=60 y=30

About this design

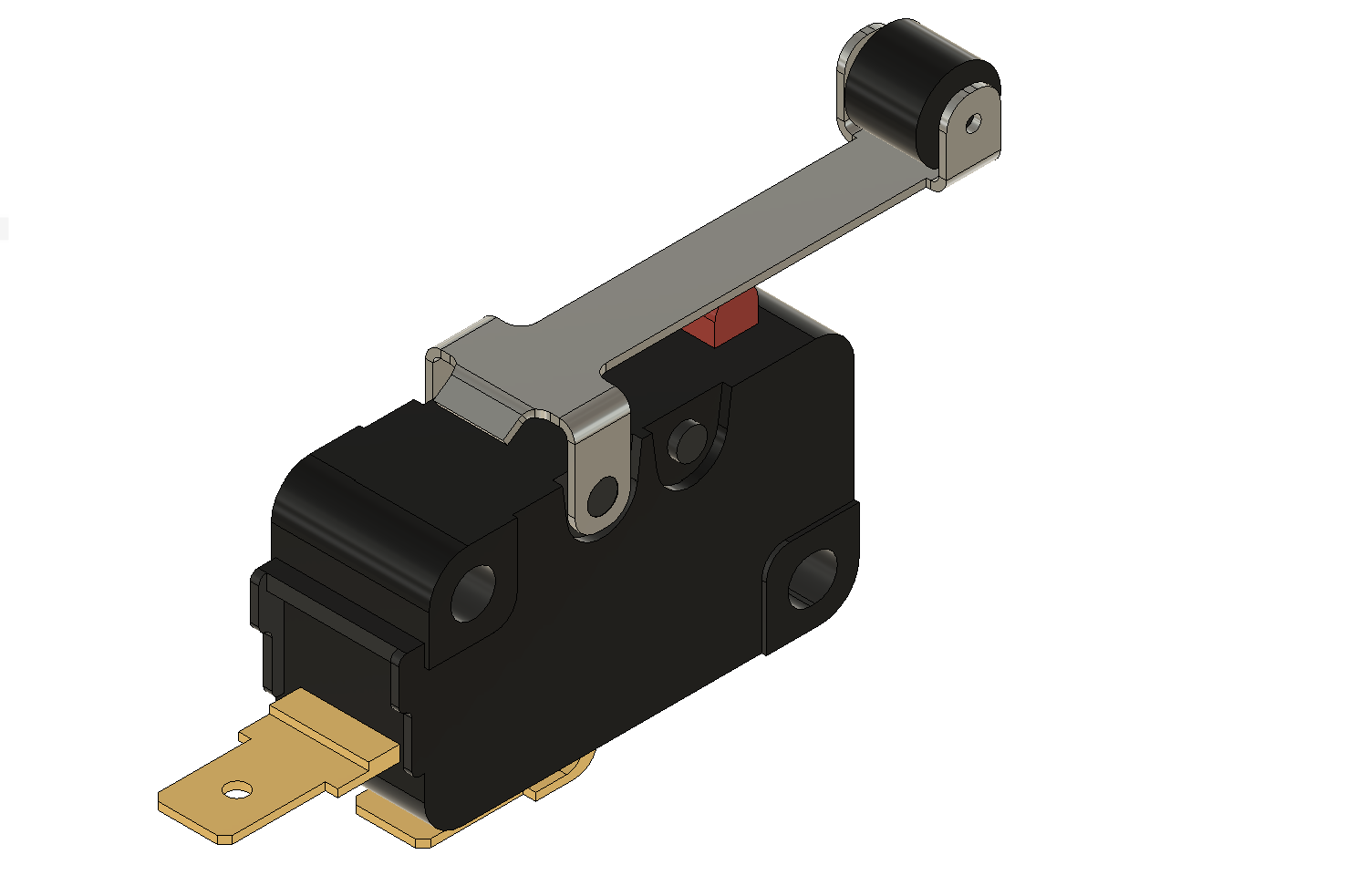

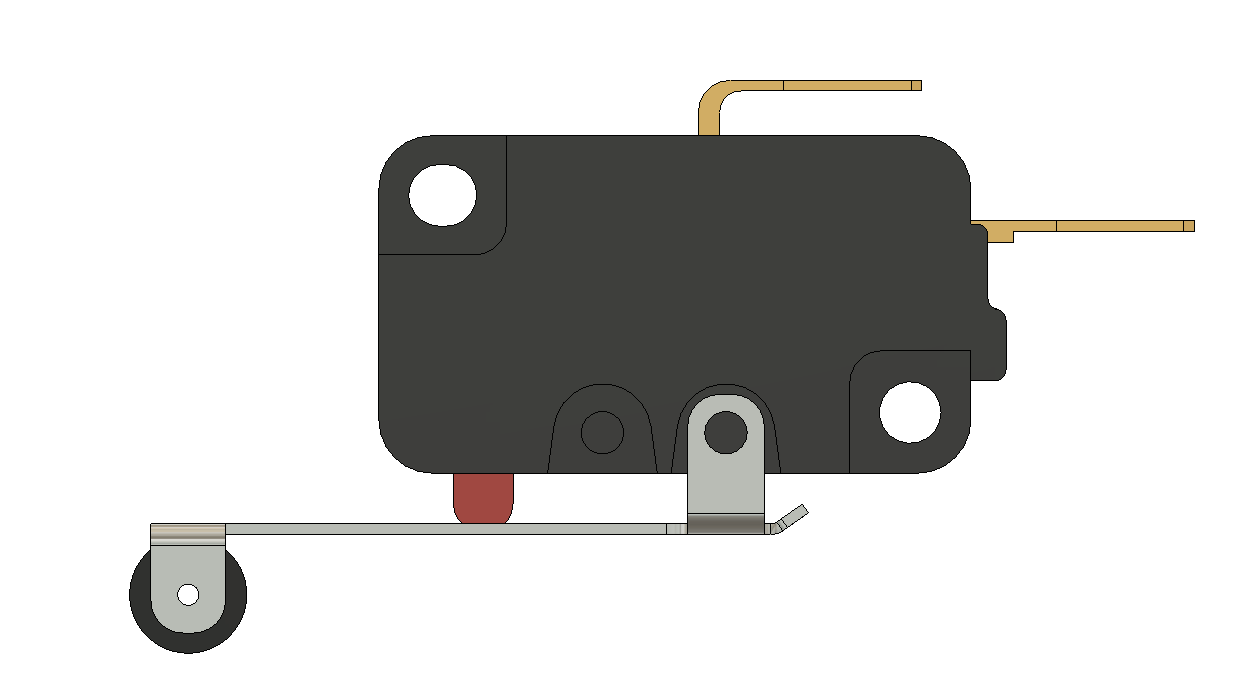

The OMRON D3V-6G6M-3C24-K dimensions were physically measured using a Vernier caliper. Individual STEP files are attached.

$5/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileFormat: STEP
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

CAD File Details

File Information
File Nameinput_file.step
File TypeSTEP
Unitsmm
Geometry Summary
Faces193
Edges502
Vertices322
Solids3
Surface Types
Planar128
Cylindrical63
Other2
Bounding Box
Width50.00 mm
Height10.20 mm
Depth26.83 mm
Volume
Total Volume4360.91 mm³
Usage Notes
NotesSuitable for design reference, visualization, prototyping workflows and engineering review. Validate dimensions and geometry before manufacturing use.

What you can use this CAD model for

  • Engineering review
  • Manufacturing discussion
  • Supplier communication
  • Prototype development
  • Design validation

Before using this CAD file

Review the model dimensions, units and geometry before using it for manufacturing or production. Some files may be created for reference, visualization or workflow acceleration and may require validation before final use.
