BIO REACTOR, Used for CFD Analysis for Projects
About this design

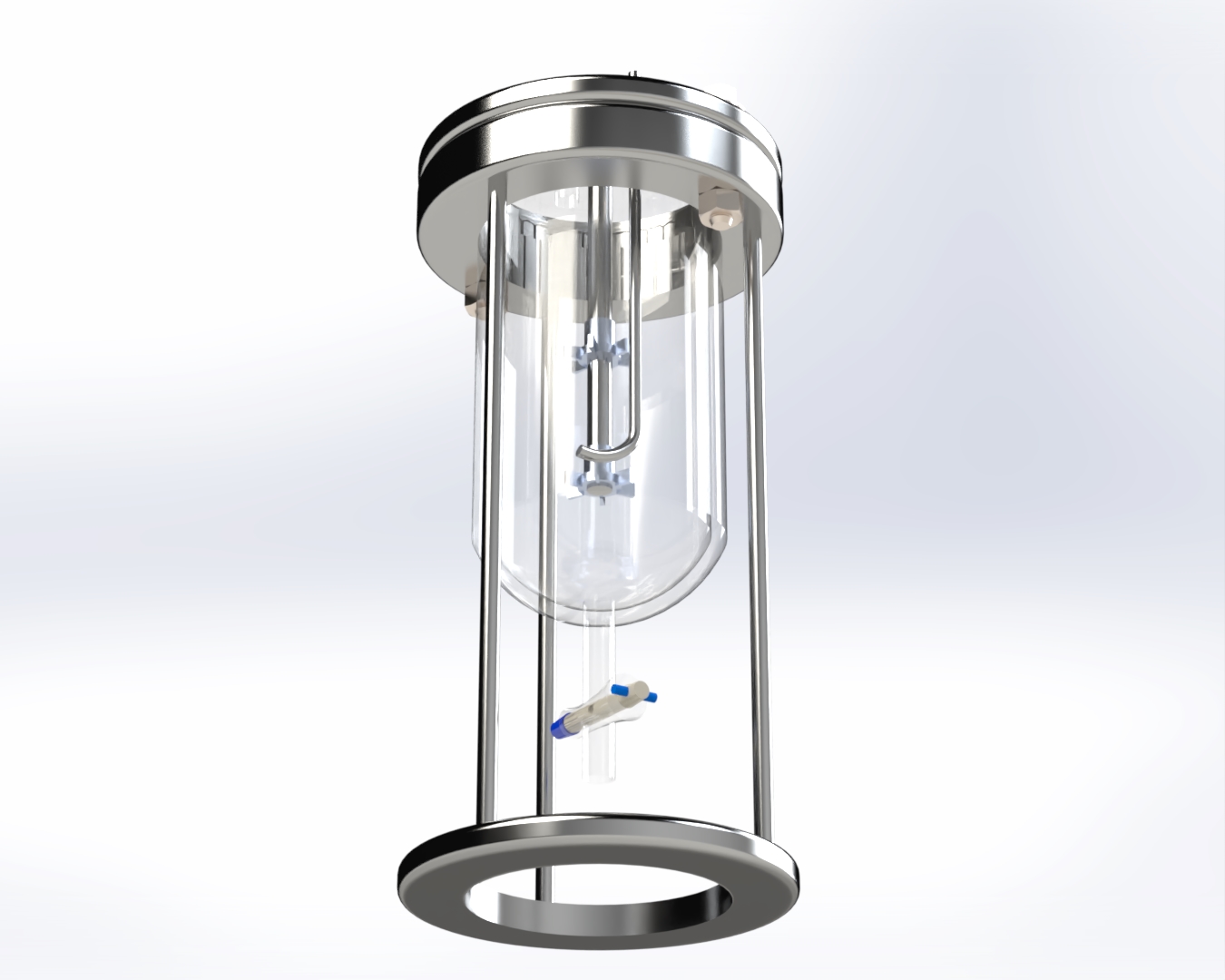

Key highlights of the project: 🛠 Recreated each component individually, from the glass vessel and stainless steel frame to the outlet valves and fittings. 💡 Used realistic materials and lighting in Visualize to ensure the rendered output closely matched the real-world model. 🎯 Focused on manufacturability, assembly feasibility, and design proportions throughout the project.
$15/download
The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.
| View Name | Extension | Action |
|---|---|---|
| Design file | STEP | |
| Front View | webp | |
| Top View | webp | |
| Bottom View | webp | |
| Left Side View | webp | |
| Right Side View | webp | |
| Isometric View | webp |
| File Name | Action |
|---|---|
About CAD
The CAD model comprises 718 faces, 1601 edges, 924 vertices, forming 19 solids components. Surface classifications: 117 planar, 266 cylindrical, 292 conical, 6 spherical, 18 toroidal, 19 other surfaces. Orientation details are unavailable. Dimensions: 119.85 mm wide, 280.00 mm high, 120.00 mm deep. Volume characteristics: total volume of 488788.35 mm³.
