4SL Lid

AT
Atul Thakur8 projects
0.0(0 reviews)
Automotive
Logo
sprite x=0 y=0
Angle x=0 y=0
Angle x=0 y=60
Angle x=0 y=120
Angle x=30 y=0
Angle x=330 y=0

About this design

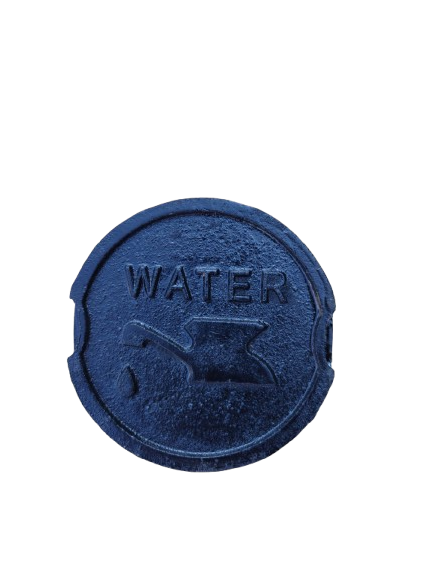

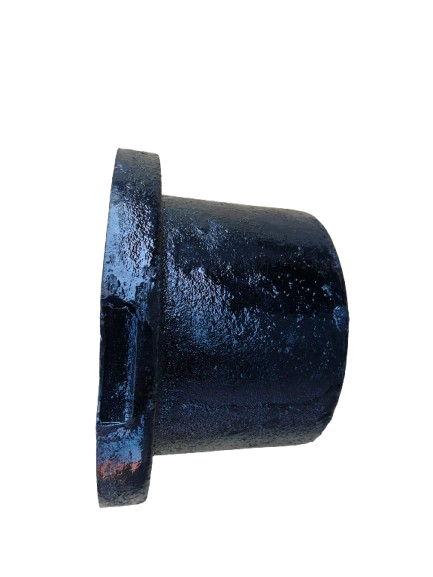

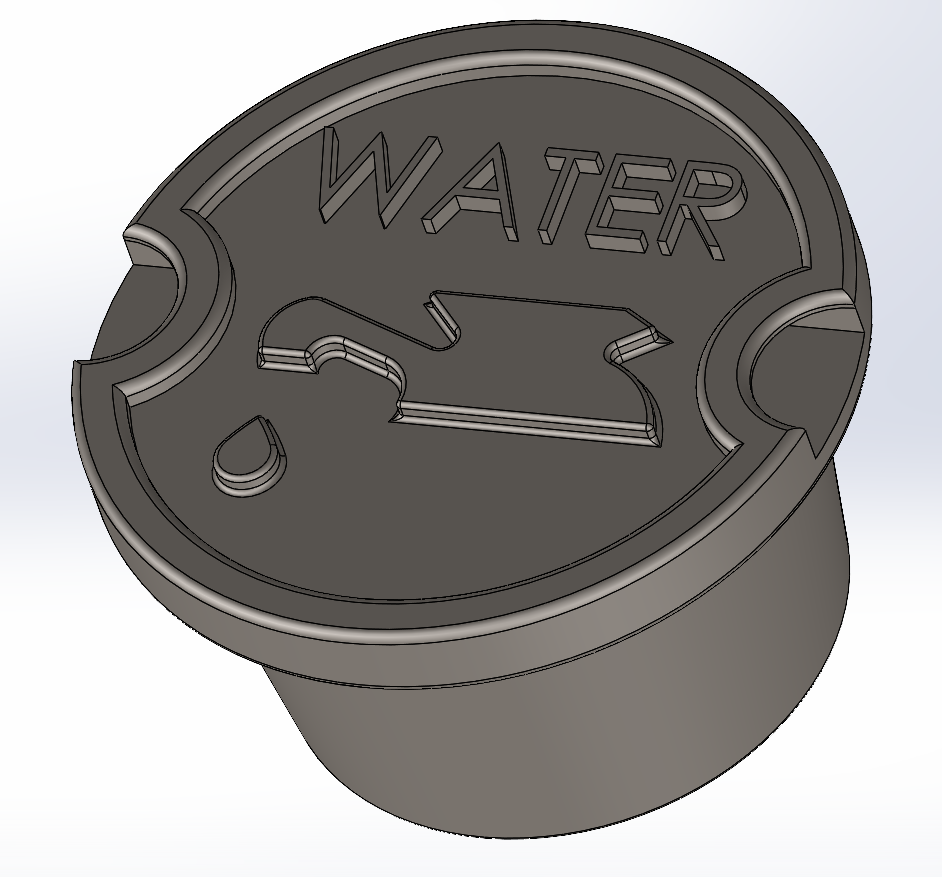

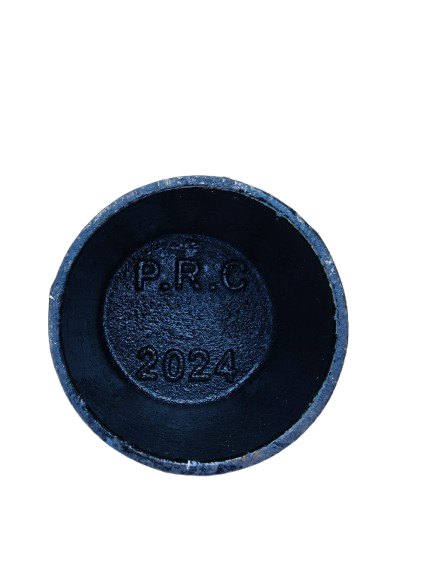

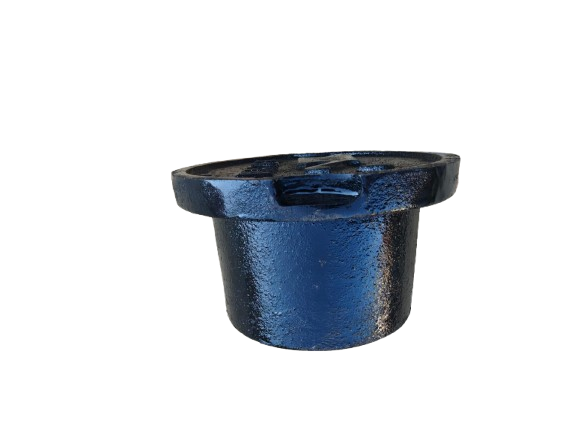

4Sl Lid used in sewerage pipes

$25/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileFormat: STEP
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

CAD File Details

File Information
File Nameinput_file.stp
File TypeSTP
Unitsmm
Geometry Summary
Faces318
Edges806
Vertices501
Solids1
Surface Types
Planar173
Cylindrical43
Conical1
Spherical7
Toroidal33
Other61
Bounding Box
Width147.00 mm
Height146.94 mm
Depth83.00 mm
Volume
Total Volume379251.94 mm³
Usage Notes
NotesSuitable for design reference, visualization, prototyping workflows and engineering review. Validate dimensions and geometry before manufacturing use.

What you can use this CAD model for

  • Engineering review
  • Manufacturing discussion
  • Supplier communication
  • Prototype development
  • Design validation

Before using this CAD file

Review the model dimensions, units and geometry before using it for manufacturing or production. Some files may be created for reference, visualization or workflow acceleration and may require validation before final use.

Paid Pipeline · $4.99 per drawing set

Need 2D engineering drawings for this CAD model?

Generate multi-view 2D technical drawings from this 3D CAD file, including orthographic views, section cuts and downloadable PDF, SVG and DXF files.

  • ✓ Ready in under 4 minutes
  • ✓ 9 sheets · editable FCStd + PDF, SVG, DXF
  • ✓ No subscription · pay per file
$4.99
per drawing set
4 min
avg. turnaround
