Motorized Wobble Table Wobbling Oscillating Shaking Rocking Vibrating Motion Platform NEMA17 3DPrint

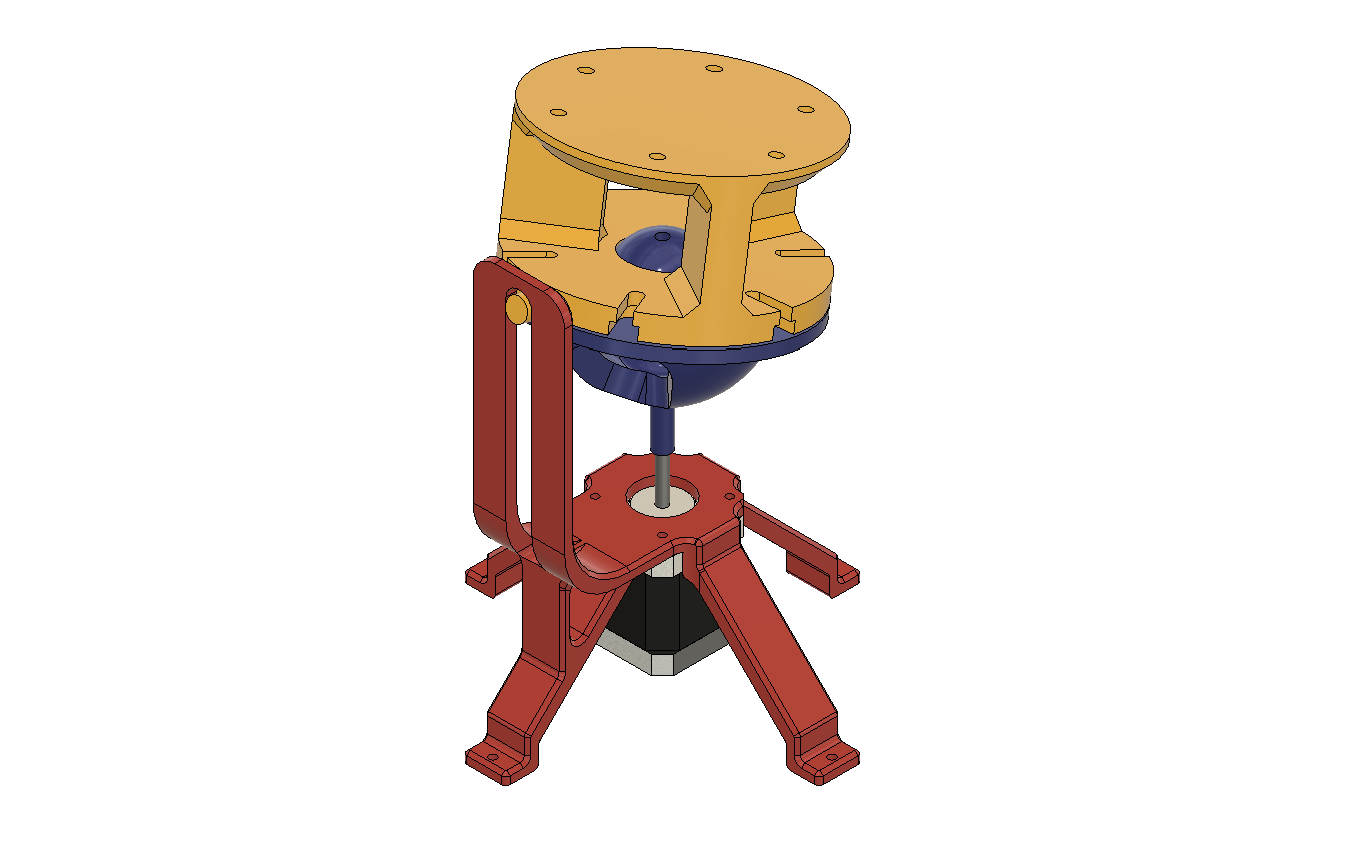

Motorized wobble table / wobbling platform / oscillating shaker / rocking vibrating motion table for testing, mixing and motion experiments. 3D print the two attached STL files exactly as provided; parts are designed to print assembled—separate printing makes assembly difficult. Insert a 5mm rod into the main part for strength. Use a NEMA17 stepper motor with 5mm–8mm coupler.
The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.
