About this design

High-performance automotive rear wing (spoiler) designed for aerodynamic efficiency and structural realism. The smooth airfoil-based profile improves downforce and airflow stability, while race-inspired mounting brackets ensure realistic load transfer. Ideal for CFD, FEA, motorsport, and EV design projects. 🎥 Full design walkthrough on YouTube:

$16/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileFormat: IGES

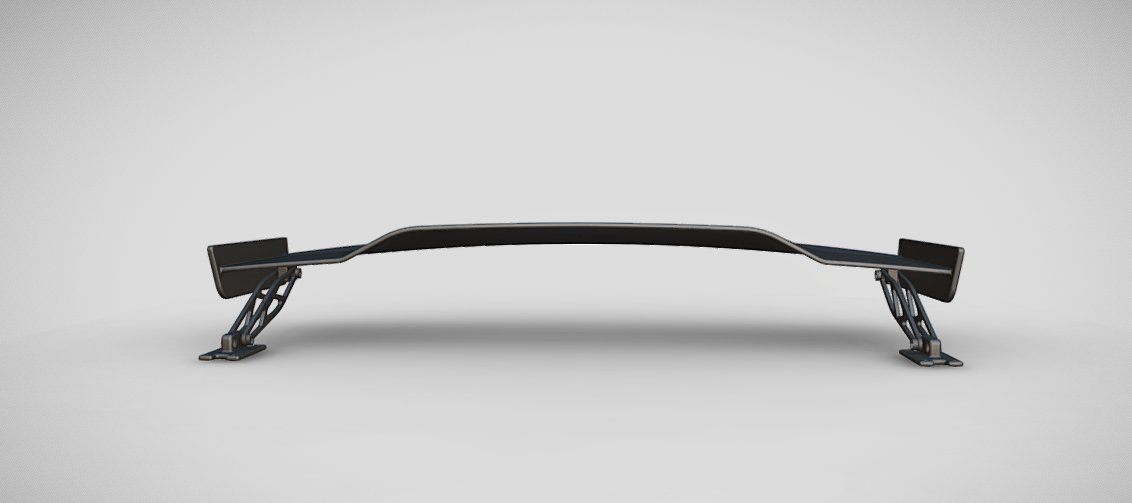

Front Viewwebp
Top Viewwebp
Bottom Viewwebp

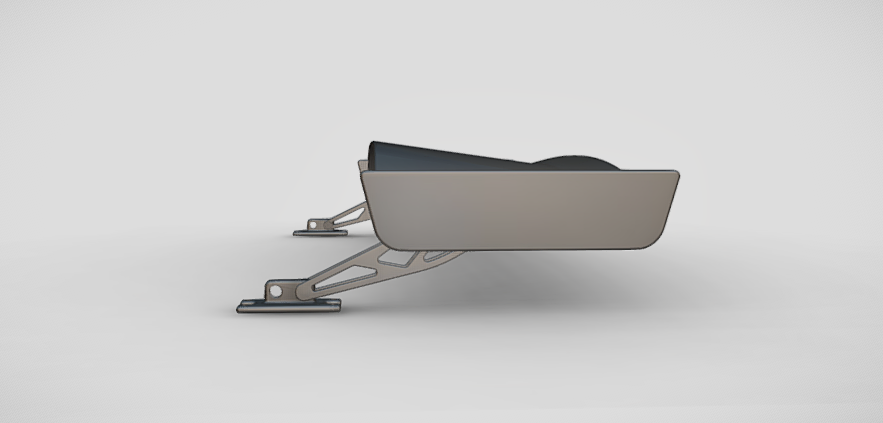

Left Side Viewwebp
Right Side Viewwebp

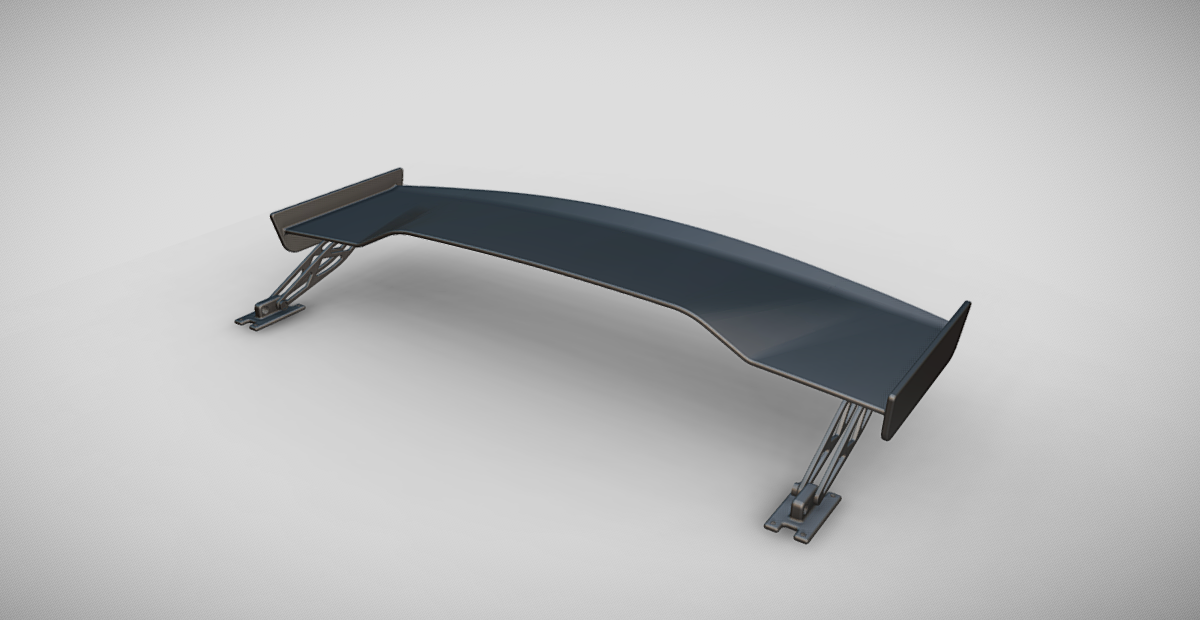

Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

CAD File Details

File Information
File Nameinput_file.igs
File TypeIGS
Unitsmm
Geometry Summary
Faces1,056
Edges6,119
Vertices6,060
Solids0
Surface Types
Other1,056
Bounding Box
Width1435.76 mm
Height618.29 mm
Depth241.58 mm
Volume
Total Volume-41593753.48 mm³
Usage Notes
NotesSuitable for design reference, visualization, prototyping workflows and engineering review. Validate dimensions and geometry before manufacturing use.

What you can use this CAD model for

  • Engineering review
  • Manufacturing discussion
  • Supplier communication
  • Prototype development
  • Design validation

Before using this CAD file

Review the model dimensions, units and geometry before using it for manufacturing or production. Some files may be created for reference, visualization or workflow acceleration and may require validation before final use.
