Automotive High-Flow Air Filter | CAD Model

VR DESIGNER57 projects
0.0(0 reviews)
Automotive
CAD
Design
NX Seimens
Air filter
trucks
Cars
Logo
sprite x=0 y=0
Angle x=0 y=0
Angle x=0 y=60
Angle x=0 y=120
Angle x=30 y=0
Angle x=330 y=0
Screenshot 2025-05-26 122042.png
Screenshot 2025-05-28 081509.png

About this design

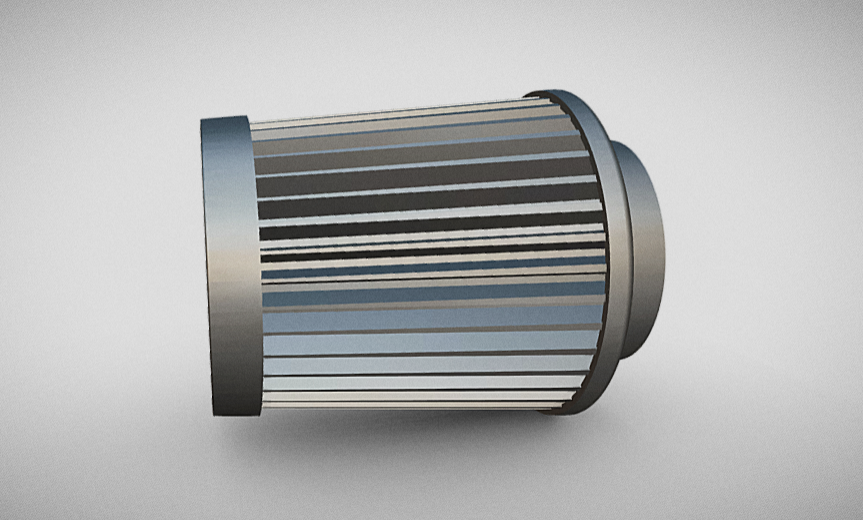

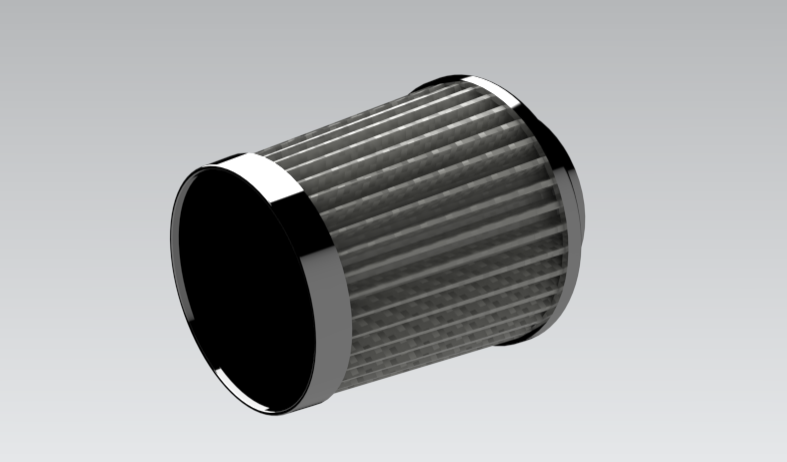

Cylindrical Air Filter CAD model designed for efficient airflow and filtration. Features a detailed pleated filter element with rigid end caps, suitable for automotive intake systems and CFD airflow analysis. Ideal for CAD practice, rendering, CFD studies, and performance vehicle design projects. 🎥 Full design walkthrough on YouTube: https://youtu.be/OCwo7nwmSKI

$12/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileigs
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (2)
File NameAction
Screenshot 2025-05-26 122042.png
Screenshot 2025-05-28 081509.png

About CAD

The CAD model comprises 327 faces, 2111 edges, 2096 vertices Surface classifications: 327 other surfaces. Orientation details are unavailable. Dimensions: 201.67 mm wide, 248.91 mm high, 201.67 mm deep. Volume characteristics: total volume of 750944.64 mm³.

File Information
File Nameinput_file.igs
File TypeIGS
Unitsmm
Geometry
Faces327
Edges2,111
Vertices2,096
Solids0
Surfaces
Other327
Bounding Box
Width201.67 mm
Height248.91 mm
Depth201.67 mm
Volumes
Total Volume750944.64 mm³
